The feature control frame below is attached to the top face of a plate. What does it require?

The face must be flat within 0.05 mm

The face must be located within 0.05 mm of its basic position

The face must be square to datum A within 0.05 mm

The face must be parallel to the bottom within 0.05 mm

Are the questions aligned with the ASQ CQI Body of Knowledge?

Yes. Each question is written around topics included in the published CQI Body of Knowledge and is tagged to the relevant BoK area. These are original practice questions and are not copied from the actual ASQ exam.

In Review Mode, you receive the correct answer and explanation immediately after answering each question. It is designed for learning, not just scoring, so you can correct misunderstandings before moving to the next question.

Does the quiz include calculations?

Yes. The free set includes a balanced mix of conceptual questions, applied scenarios and short calculations. The goal is to help you experience several common CQI question styles.

What is included in the full CQI practice-question package?

The complete package provides additional CQI-style practice sets with broader Body of Knowledge coverage, detailed explanations and more opportunities to work on calculations, scenarios and commonly confused concepts.

Does purchasing the practice tests include the ASQ examination?

No. These are independent exam-preparation materials. Registration, eligibility review and the official certification examination are handled separately by ASQ.

ASQ CQI Inspection and Test Practice Quiz

Try before you buy

Free sample questions

2 questions from this set, shown in full with the correct answer and the reasoning behind it. Read them as a study resource.

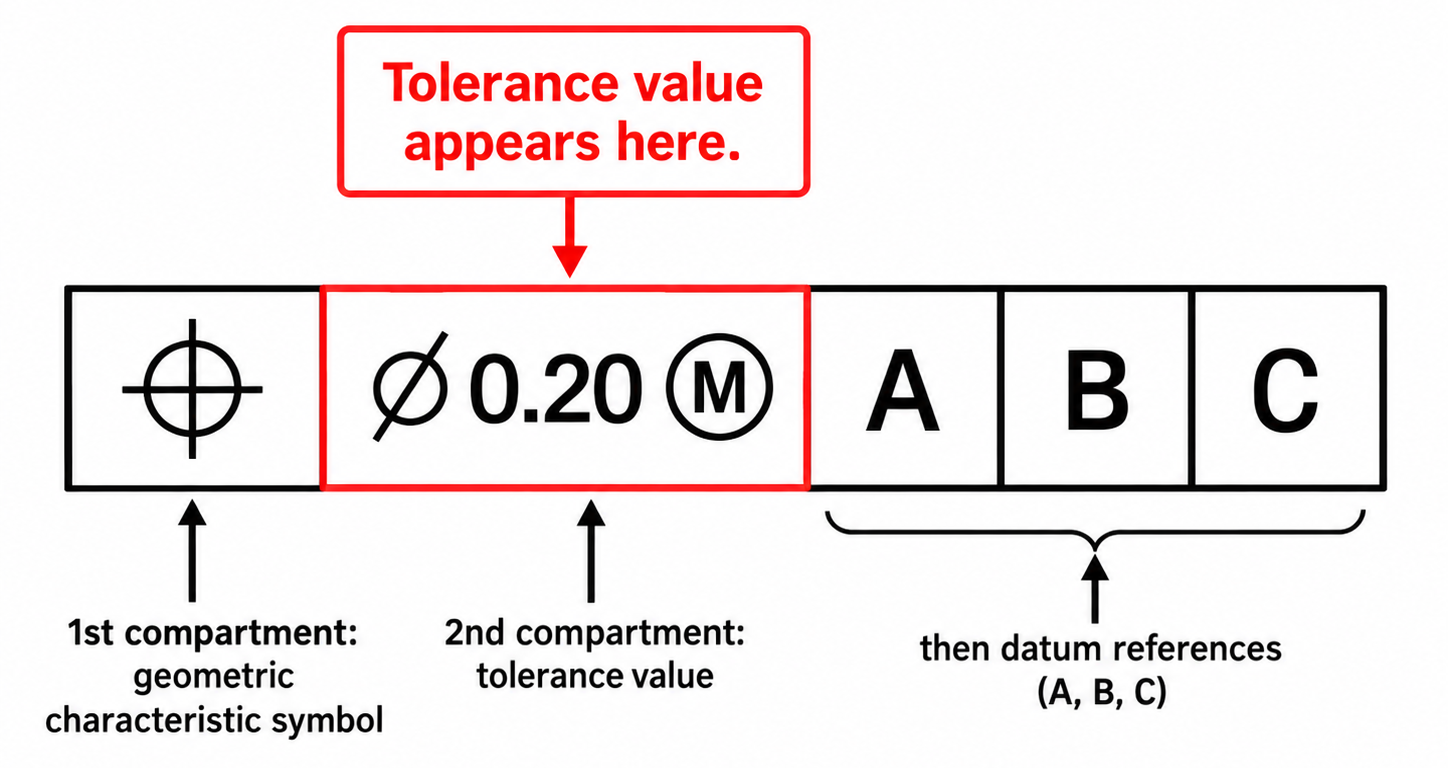

Q1.In a feature control frame, where does the tolerance value appear?
- A.In the first compartment
- B.In the second compartment✓ Correct answer
- C.In the last compartment
- D.Above the frame
Explanation
The frame is read from left to right. The first compartment holds the geometric characteristic symbol, the second holds the tolerance value together with any diameter symbol or material condition modifier, and the compartments after that hold the datum references in order of precedence.
Reference: CQI BoK III

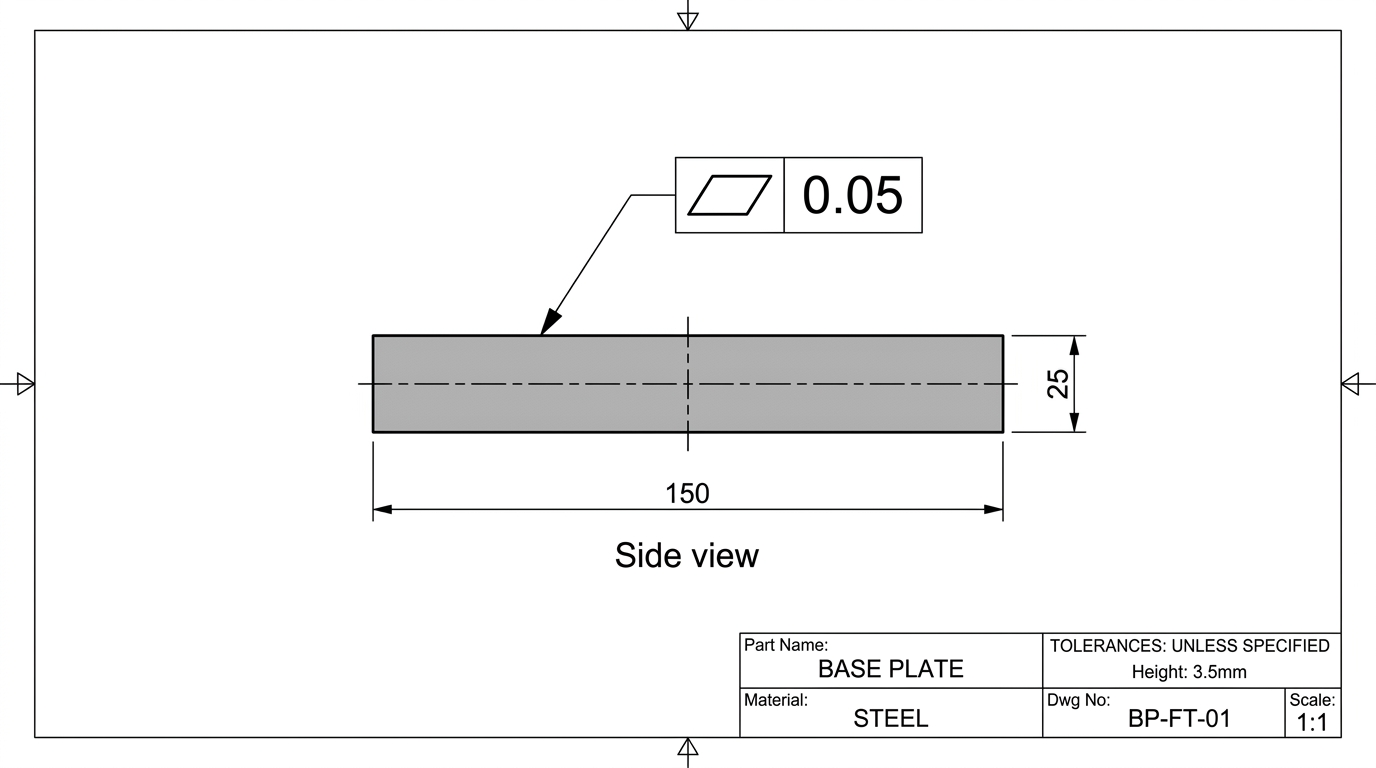

Q2.The feature control frame below is attached to the top face of a plate.

What does it require?
- A.The face must be located within $0.05$ mm of its basic position
- B.The face must be square to datum A within $0.05$ mm
- C.The face must be flat within $0.05$ mm✓ Correct answer
- D.The face must be parallel to the bottom within $0.05$ mm
Explanation
The parallelogram symbol is flatness, and the value is the distance between two parallel planes that the whole surface must lie between. Flatness is a form control, so it never references a datum, which is why the frame has only two compartments. Parallelism, perpendicularity and position all require a datum and would show datum letters in the frame.
Reference: CQI BoK III

Want the other 23 questions in CQI - 3. Inspection and Test?

What you get

How well do you understand Inspection and Test

25 exam-style CQI questions focused on Inspection and Test
Full explanation for every question
Mobile friendly, no install required
Instant feedback as you answer

Strengthen Your Inspection and Test Knowledge

Preparing for the ASQ Certified Quality Inspector (CQI) exam?

This paid 25-question practice quiz focuses on Inspection and Test, Section III of the current CQI Body of Knowledge. This is one of the most important areas of the exam and covers the practical activities inspectors perform when evaluating products, drawings, specifications, sampling results, and nonconformities.

The questions include a practical mix of:

Reading and interpreting drawings
Engineering specifications
GD&T concepts
Inspection planning
Receiving, in-process, and final inspection
First-article inspection
Inspection methods and techniques
Sampling concepts
Acceptance criteria
Nonconforming material
Defect identification and classification
Inspection errors
Practical product inspection scenarios
Documentation and reporting
Plausible distractors based on common inspection mistakes

Learn from Every Question

This quiz is offered in Review Mode, so you will see the correct answer and a clear explanation immediately after each response.

Each explanation helps you understand:

Why the correct answer is right
Which inspection or test concept is being assessed
Why the other options are less appropriate
How the concept applies in a practical inspection situation
How similar situations may appear in a CQI-style question

The goal is to strengthen your ability to make sound inspection decisions based on drawings, specifications, measurements, sampling information, and acceptance requirements.

Part of the Paid CQI Practice Package

This 25-question quiz is included in the complete CQI Practice Test Package.

Use it to:

Improve drawing and specification interpretation
Strengthen inspection planning skills
Apply sampling and acceptance concepts
Recognize nonconforming conditions
Improve inspection decision-making
Practise practical CQI scenarios
Build confidence in Section III of the CQI Body of Knowledge

Ready to Test Your Inspection and Test Knowledge?

Complete the 25-question Review Mode quiz and use every incorrect answer as a guide for further study.

Start the CQI Inspection and Test Practice Quiz

What this quiz covers

Technical Mathematics
Metrology
Inspection and Test
Quality Assurance and Improvement

Questions about this practice test
